Fans for electronical appratus

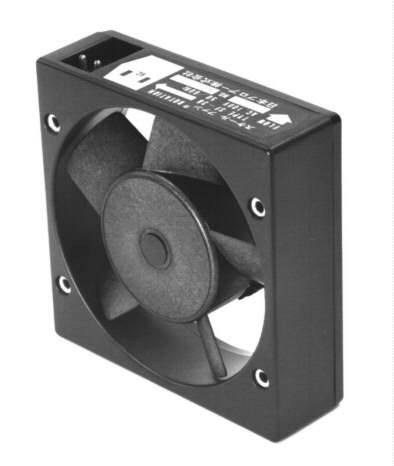

SCALE FAN "SF-38"
Super Noiseless & Energy Saving Design

  • Airmoving element. Air speed-5 m/min.
  • Air volume - 77.6 CFM
  • Cooling for Computers, Office machines, Space equipments etc.
  • Thickness-38mm.
  • Outward dimension-121mmSq.
  • Condenser-running Induction motor, 5 Blades
  • A light alloy
  • SF-38 AC100V(200) 50/60Hz.Standard Model
  • SF-38 AUTO-Equipped with automatic temperature stabilizingelement(30deg.C.ON)
  • SF-38 4P - 4 Pole type that controls noise and air-volume
  • SF-38SS -The shield type that unscatters flux to the outward
  • SF-38 115V. 400Hz Type
  • SF-38 200V. 400Hz Type


SPECIFICATION
Model Nos.
Standard
4P
200V400Hz
115V400Hz
Input Voltage
AC.100V(200V)
AC.100V
AC.200V
AC.115V
Input Amp.
130 mA
70 mA
200 mA
160 mA
Frequency
50/60 Hz
50/60 Hz
400 Hz
400 Hz
Rotation
2400 r.p.m
1200 r.p.m
3000 r.p.m
3200 r.p.m
Max. Air-volume
77.6 CFM
42.3 CFM
98.8 CFM
98.8 CFM
Max. Static pressure
34.3 Pa
17.6 Pa
65 Pa
65 Pa

Outline
