The model can improve the environmental conditions at soldering
works, and increase an operating efficiency. It is so compact
that can be installed without worrying about the space. Due to
its quiet operation, it has widely been used at such places - Hospitals,
Laboratories, Small-sized factories, Homes and etc.. If the silencer
kit is used, the noise can be extremely reduced.
SPECIFICATION
Model No.
Suction duct
How to install
Air-volume
Max.Static pressure
Power
Input
Remark
MS-25SF
Dia.30x0.5m
At floor
35.3/38.8 CFM
784/1078 Pa
60W
AC.100V
50/60Hz
MS-25MF
Dia.50x1.0m
MS-25LF
Dia.75x1.0m
two pcs of Activated carbon filter
MS-25S
Dia.30x0.5m
By suspension

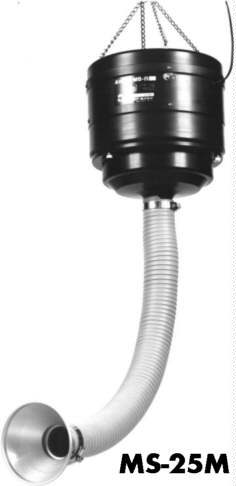

MS-25M
Dia.50x1.0m
MS-25L
Dia.75x1.0m
two pcs of Activated carbon filter
Available to make the model with handy and/or foot switch
which can be operated within reach of the operator,for easy operation.
MS-25S.MS-25SF
